GreenLee

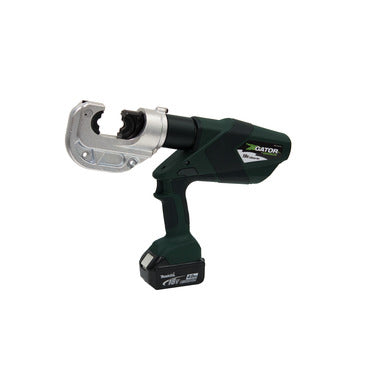

CRIMPER, 12T LI, STD, 120V
CRIMPER, 12T LI, STD, 120V
SKU:GRNEK1240LX11
Regular price
$4,085.83 USD
Regular price
Sale price
$4,085.83 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Share



CALL US TO PLACE ORDER
Specification
Product Features
- This cable crimper comes equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app
- Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- LED light provides the operator with the battery charge and tool maintenance status
- In Line tool style is light weight and very easy to control
- One trigger controls all tool functions
- Crimping head rotates 350°
- Tools automatically retract when the crimping cycle is complete
- Overmolded tacky grip areas make gripping the tool easier and more comfortable for linemen
- LED work light illuminates dark work areas
- Greenlee battery-powered crimping tools now use bio-degradable oil
- Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
- Uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies
- Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Specifications
Sub Brand | Gator |
Type | Die style crimper |
Application | 12 Ton Crimping |
Standard | C/US UL Listed |
Wire Size | 8 AWG - 750 Kcmil Cu & Al |
Opening Size | 1.65 IN (42 mm) |
Overall Length | 16.25 IN (413 mm) |
Crimping Force | 24,000 lbs. (106 kN) |
Crimping Capacity | 750 Kcmil (MCM) Cu & Al |
Connector Type | Color-coded lugs and splices |
Handle Type | Pistol Style with over molded rubber grip |
