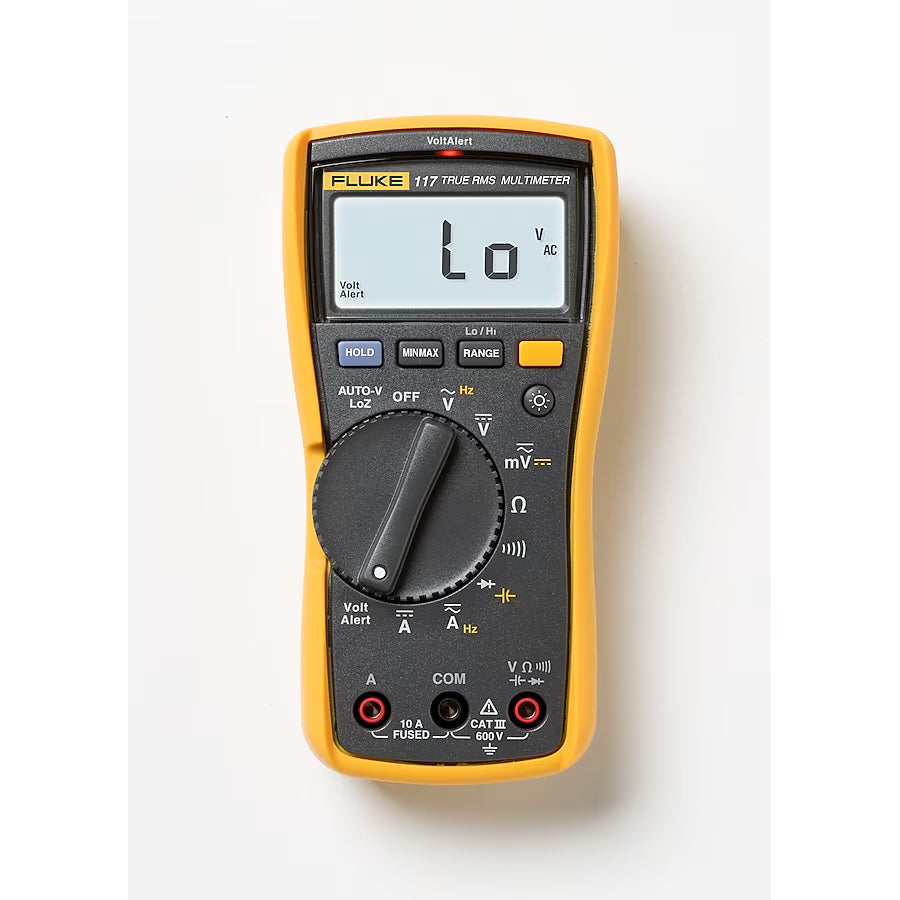

ELECTRICIANS TRUE RMS MULTIMETER

Product Features

• Electrician's True-RMS digital multimeter designed for demanding environments like commercial buildings, hospitals, and schools
• Integrated non-contact VoltAlert™ voltage detection lets you check for voltage without touching test leads to the conductor
• AutoVolt automatic AC/DC voltage selection reads whichever voltage is present
• LoZ (low input impedance) function helps prevent false readings caused by ghost (stray) voltage
• True-RMS for accurate measurements on non-linear (noisy) signals and loads
• Measures voltage, resistance, continuity, frequency, capacitance, min/max/average, and current
• Large white LED backlight for working in poorly lit areas
• Ergonomic design with a lanyard for one-hand operation; CAT III 600V safety rated

Specifications

• Style: Electrician's True-RMS Digital Multimeter
• Brand: Fluke
• Model: 117
• Max Voltage: 600V AC/DC
• Display: 6,000 counts, digital with analog bar graph; updates 4x/second
• Max Current: 10 A (20 A for 30 seconds max)
• Max Resistance: 40 MΩ
• Max Capacitance: 10,000 μF
• Max Frequency: 50 kHz
• Special Functions: Non-contact voltage (VoltAlert™), AutoVolt, LoZ, True-RMS, Min/Max/Average
• Safety Rating: CAT III 600V
• Backlight: White LED
• Warranty: Lifetime (limited)
• Fluke Benefit: Built-in non-contact voltage detection plus LoZ to eliminate ghost-voltage false readings
• Included: Fluke 117 Multimeter, TL75 test leads, 9V battery (installed), user manual

Order today for same-day pickup from our Houston or San Antonio locations.

We offer same-day pickup at both of our retail locations, as well as delivery upon request.
