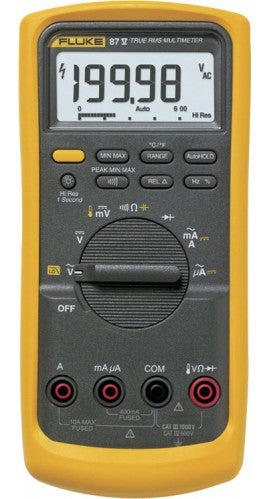

INDUSTRIAL TRUE RMS MULTIMETER

Product Features

• Industrial True-RMS digital multimeter that identifies complex signal problems fast and captures intermittents as quick as 250 μS with peak capture
• Selectable low-pass filter delivers accurate voltage, current, and frequency readings on variable frequency motor drives (VFDs/ASDs)
• Built-in temperature function measures up to 1090°C (1994°F) — no separate meter needed
• Large digit display with a bright two-level backlight and a fast-responding analog bar graph for changing or unstable signals
• Rugged safety design withstands voltage spikes over 8,000 V, with an audible Input Alert if leads are in the wrong jacks
• Removable holster with built-in test-lead and probe storage; relative mode removes test-lead resistance for accurate low-resistance readings
• Easy-access battery door for fast changes without breaking the calibration seal
• Long battery life — approximately 400 hours typical on alkaline (without backlight)

Specifications

• Style: Industrial True-RMS Digital Multimeter (with temperature)
• Brand: Fluke
• Model: 87V
• Order No.: 87-5
• UPC: 095969245241
• Max Voltage: 1000 V AC/DC
• DC Voltage Accuracy: ±(0.05% + 1)
• Max Current: 10 A (20 A for 30 seconds max)
• Max Resistance: 50 MΩ
• Max Capacitance: 9,999 μF
• Max Frequency: 200 kHz
• Temperature Range: -200°C to 1090°C (-328°F to 1994°F), excluding probe
• Display: 6,000 counts (19,999 in high-resolution mode); 32-segment analog bar graph
• Safety Rating: CAT III 1000 V / CAT IV 600 V (EN 61010-1, 3rd edition)
• Agency Approvals: CE, CSA, RCM
• Dimensions: 7.9 x 3.8 x 2 in (with holster)
• Weight: 0.78 lb (meter) / 1.37 lb (with holster)
• Warranty: Lifetime
• Fluke Benefit: Industry-standard accuracy plus a low-pass filter for reliable VFD/motor-drive measurements
• Included: Multimeter, test leads, alligator clips, temperature probe, holster, 9V battery (installed)
