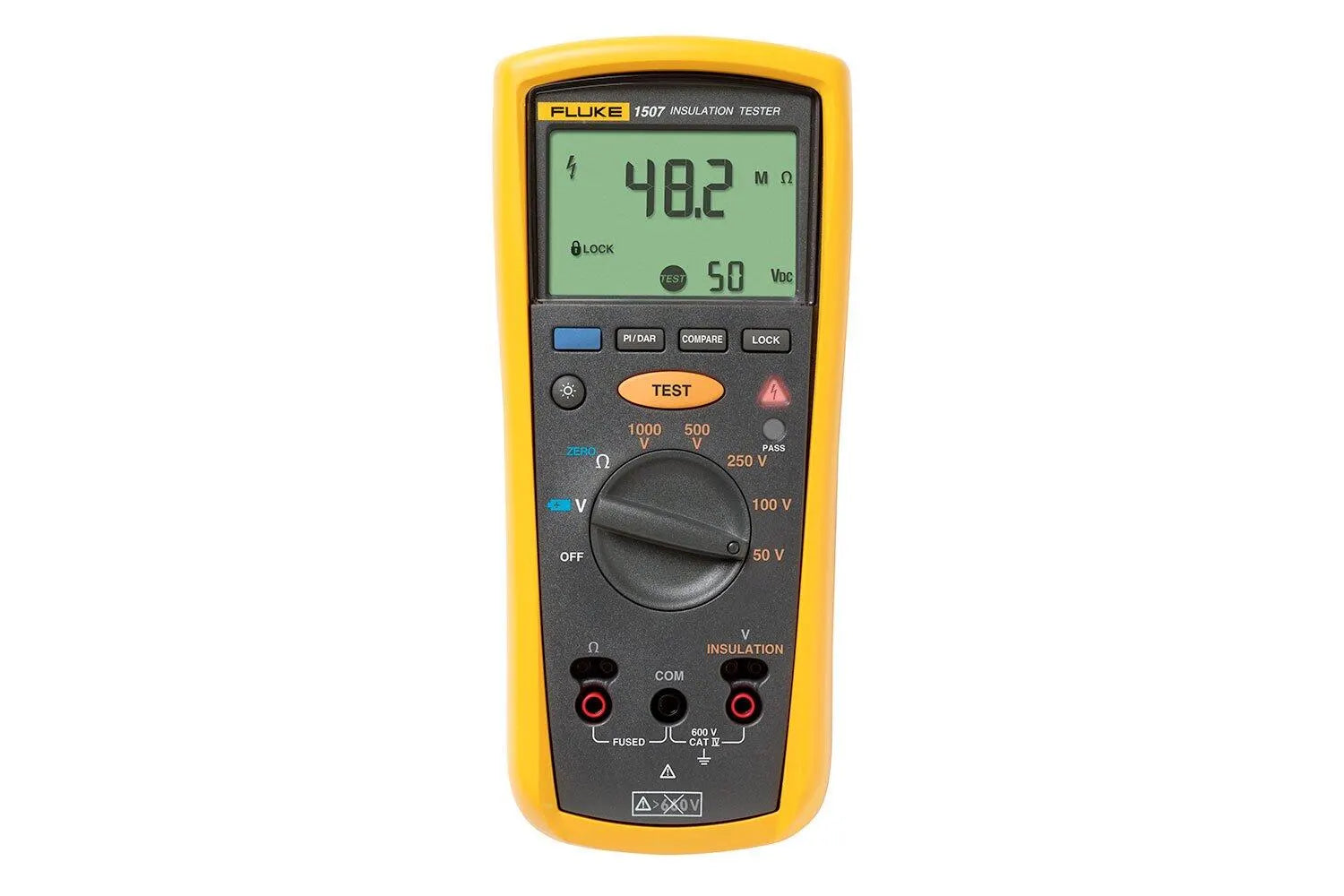

INSULATION TESTER

Product Features

• 1507 insulation resistance tester with five test voltages: 50, 100, 250, 500, and 1000 V
• Measures insulation resistance from 0.01 MO to 10 GO
• Also measures AC/DC voltage and earth-bond resistance on de-energized circuits
• Remote probe makes repetitive or hard-to-reach testing fast and easy
• Pass/Fail comparison plus automatic PI/DAR ratio calculation
• Live-circuit detection inhibits insulation test if voltage above 30 V is present
• Auto-discharge of capacitive voltage and CAT IV 600 V rating for user protection
• Large backlit display; sleep mode and auto power-off; passes 1 m drop test

Specifications

• Brand: Fluke
• Model: 1507
• Type: Insulation Resistance Tester
• Test Voltages: 50/100/250/500/1000 V
• Insulation Range: 0.01 MO to 10 GO
• Safety Rating: CAT IV 600 V
• Power: 4 AA (>=1000 insulation tests)
• Dimensions (HxWxL): 1.97 x 3.94 x 8.00 in (50 x 100 x 203 mm)
• Weight: 550 g (1.2 lb)
• Warranty: 1-year
• Includes: remote probe, test leads, test probes, alligator clips, holster, documentation
