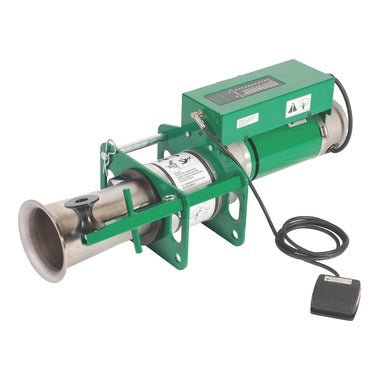

PULLER ASSEMBLY (UT10)

PULLER ASSEMBLY (UT10)

GRNUT10-2S

$6,152.09 USD
$6,152.09 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

View full details

CALL US TO PLACE ORDER

713-222-8665

Specification

Product Features

  • The Ultra Tugger 10,000-pound puller has two speeds and can shift from high speed to low speed with a double-tap motion on the foot pedal.
  • High speed can pull up to 16 feet per minute up to 4,000 pounds, while low speed can pull 8,000 pounds at 9 feet per minute.
  • The capacity peaks at 10,000 pounds at a rate of 6 feet per minute

Specifications

Sub Brand Name Name Ultra Tugger
Load 0 - 6500.000 LB (0 - 28.900 KN) Continuous Operation, 6500.000 - 8000.000 LB (28.900 - 35.600 KN) 15 Minutes ON/15 Minutes OFF, 8000.000 - 10000.000 LB (35.600 - 44.500 KN) Momentary
Cable Type Electrical Cable
Voltage Rating 115 Volts
Prime Mover Specification Required Rope: 7/8" diameter, double-braided, polyester composite Average Breaking Strength: 143 kN (32,000 lb) minimum
Standard Puller Assembly
Type Puller Assembly
Application Electrical Cable pull
Capacity The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
Amperage Rating 20 Amp
