GreenLee

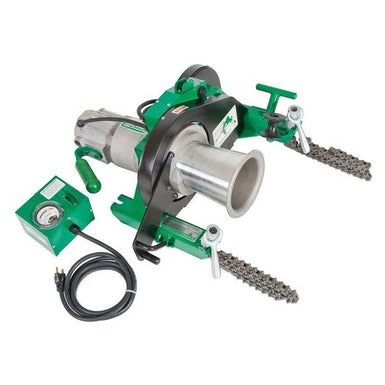

PULLER, CABLE (6001)

PULLER, CABLE (6001)

GRN6001

$5,451.65 USD
$5,451.65 USD
Sale Sold out
Shipping calculated at checkout.

In stock

View full details

CALL US TO PLACE ORDER

713-222-8665

Specification

Product Features

  • Pull up to 6,500 lbs. (28.9kN) with less than 27 lbs. (120N of operator effort with these powerful cable pullers
  • Unique floor mounting attachment for quick, reliable setup
  • Leaf-type mounting chains won't twist when tightening
  • Heat-treated steel serrated gripper feet for secure mounting to conduit
  • Force Gauge included to constantly monitor the pull
  • Right-angle sheave allows the operator to stand out of the direct line of force
  • Audio alarm high force warning and circuit breaker shut off at maximum force for added safety
  • Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan

Specifications

Sub Brand Super Tugger
Load 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
Cable Type Electrical cable
Voltage Rating 125 Volts
Mounting Floor mount / Chain mount
Prime Mover Specification Double-Braided Composite Rope 3/4 IN
Includes Force Gauge And Vise Chains
Standard Super Tugger Cable Puller Power Unit, Includes force gauge and vise chains
Type Puller Assembly
Accessory 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M)
Application Electrical Cable pull
Capacity No load : 5 m/min (16.5 ft/min) 8900 newtons (2000 lb) : 3.4 m/min (11 ft/min) 17.8 kN (4000 lb) : 2.3 m/min (7.5 ft/min)
Drive Motor 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp
Pulling Force 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
Pulling Rope 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN)
Pulling Speeds 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB
Amperage Rating 15 Amp
