GreenLee

SEEKER, CIRCUIT

SEEKER, CIRCUIT

GRNCS-8000

$897.76 USD
$897.76 USD
Sale Sold out
Shipping calculated at checkout.

In stock

View full details

CALL US TO PLACE ORDER

713-222-8665

Specification

Product Features

  • Advanced patented non-directional sensing technology
  • Superior sensitivity and functionality providing for accurate tracing & locating
  • Ergonomic receiver with information-rich full-color graphical LCD
  • Graphics and audible signal provide quick and easy way to understand tracing feedback

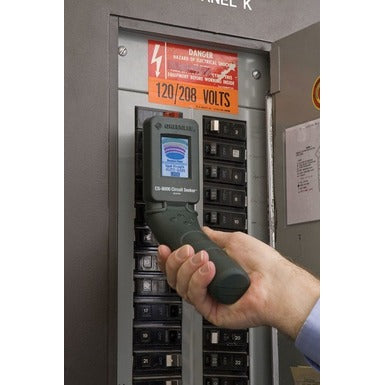

  • Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits
  • Allows linemen to locate and identify blown fuses
  • Finds shorts and breaks in conductors
  • Low pitch, high volume audible indicator
  • User-selectable automatic or manual gain capability for fast, convenient use
  • Can be used on GFCI protected circuits
  • Automatic backlight on receiver maximizes battery life
  • Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing
  • Lifetime Limited Warranty

Specifications

Application For Used On GFCI Protected Circuits
Capacity 0 - 750V AC/DC
Display Full-Color Graphical LCD
Frequency 15.15 kHz
Receiver Range Up To 20.000 FT (6.000 M) Live Line Mode
Receiver Range Up To 10.000 IN (3.000 M) Open Line With Metallic Connection To Ground
Receiver Range 1.000 - 3.000 FT (0.300 - 0.900 M) With Capacitive Ground Reference
Receiver To Transmitter Distance Up To 4 Miles For Closed Circuit Tracing

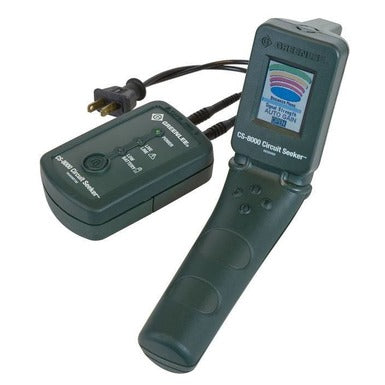

Replacement Part 12849 Transmitter, 12850 Receiver, 10057 Alligator Clips (2), 10054 AC Blade, 12852 AC Plug Adapter, 12853 Extension Leads (2), 12851 Carrying Case
Sub Brand Circuit Seeker
Weight 4.300 LB (1950.000 G)
