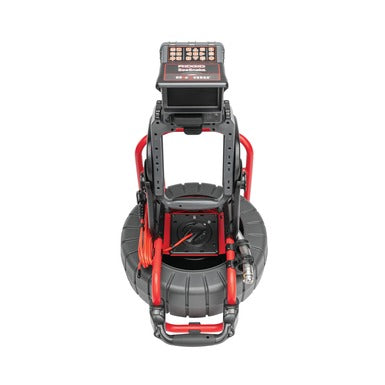

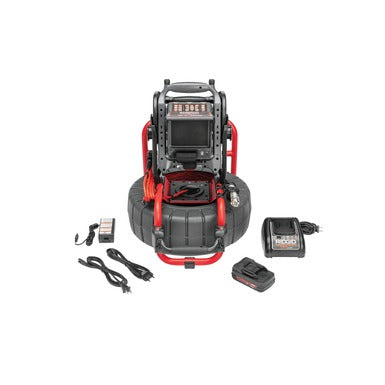

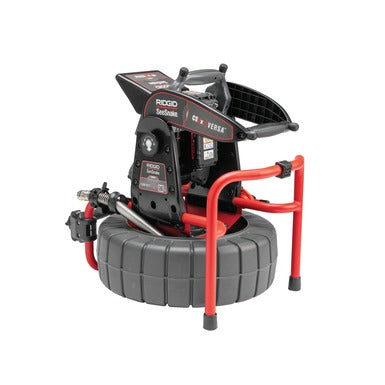

Digital Recording Monitor with Wi-Fi provides fast, efficient job setup.

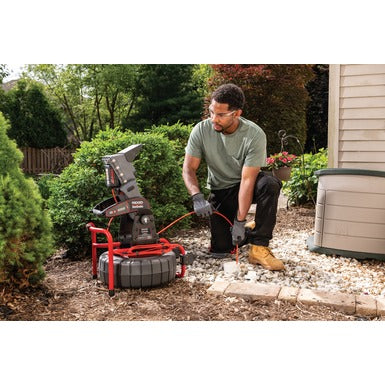

Tilt the monitor to the desired viewing angle while docked or remove it for convenient job site placement.
Self-Leveling Camera head provides an image that is always upright.
TruSense technology features a high dynamic range (HDR) image sensor and two-way communication between the camera and SeeSnake CSx series Wi-Fi enabled monitors.
HDR image sensor maintains color and detail in high dynamic range scenes.
TiltSense™ inclinometer shows camera's angle in-pipe on CSx series monitors.
Download the free HQx Live app to view and record inspection jobs on your phone or tablet.
Use the high power FlexMitter® 512 Hz sonde with a RIDGID® receiver to locate the camera.
Specifications
Line Capacity
1.5" to 6" (38mm to 152mm)
Push Cable Length
131' (40m)
Push Cable Diameter
0.26" (6.7 mm) with 3 mm [0.12 in] Fiberglass core
Push Cable Jacket
Polypropylene
Push Cable Bend Minimum Radius
2.5" (63.5 mm)
Weight (without batteries)
17.6 lbs. (8.0 kg)
Size Length
25" (63.5 cm)
Width
14" (35.6 cm)
Height
17" (43.2 cm)
Camera Type
1" (25 mm)
Operating Temperature
14°F to 122°F (-10°C to 50°C)
Storage Temperature
14°F to 158°F (-10°C to 70°C)
Ingress Protection without Monitor
IPx5
Light Source
High-Intensity LED Sonde 512 Hz
