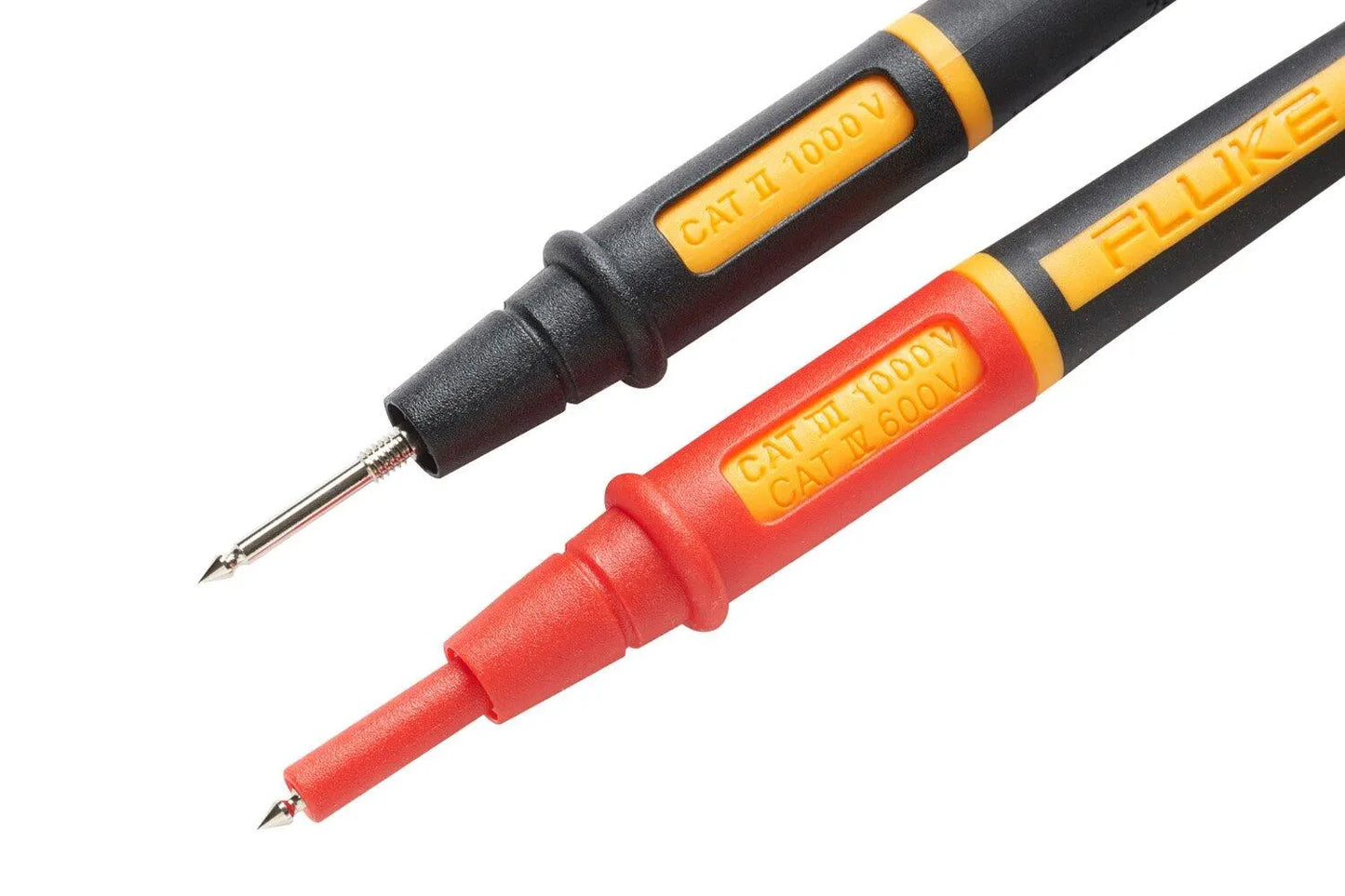

TWISTGUARDTM TEST LEADS, 2MM DIA PROBE TIPS

Product Features

• Patented TwistGuard™ extendable tip shroud — twist the lead to change exposed probe tip length from 19 mm to 4 mm, meeting the highest electrical safety requirements
• Reduce tip exposure for CAT III testing, or increase exposure for CAT II probing — versatility for most measurements from one set
• New WearGuard™ lead-wire wear indication: two layers of silicone insulation with a contrasting inner color that shows through when leads are nicked, scuffed, or damaged and need replacement
• Double-insulated silicone leads withstand high temperatures and stay flexible in the cold
• Extra-heavy-duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure
• Universal input plugs compatible with all instruments that accept standard 4 mm shrouded banana plugs
• Probes always display the correct category rating for the tip exposure being used
• Fully compliant with IEC 61010-031 issue A1:2008; UL and IEC certified

Specifications

• Style: TwistGuard™ Test Leads (one pair — red & black)
• Brand: Fluke
• Model / Part Number: TL175
• Probe Tip Diameter: 2 mm
• Exposed Probe Tip Length: 19 mm to 4 mm (0.75 in to 0.16 in), adjustable
• Safety Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V
• Max Current: 10 A
• Pollution Degree: 2
• Plug Compatibility: Standard 4 mm shrouded banana plugs (universal)
• Bend Durability: 30,000+ bends
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Max Altitude: 2,000 m (6,562 ft)
• Insulation: Double-layer silicone (WearGuard™)
• Standards: IEC 61010-031 A1:2008, UL / IEC certified
• Includes: One pair (red, black) TL175 test leads
• Fluke Benefit: Twist-adjustable tip exposure for CAT II/III safety plus WearGuard damage indication in one rugged set
